  • Tear Resistant

  • Won't absorb moisture

  • Resists damage from
    soil acids and alkalis

C0059 - Mesh Poses-0001 Photoshop.png

Membrane Reinforcement Sheet

HYDRO GUARD_Logo.jpg

Description

HYDRO GUARD Reinforcement Sheet is an unsaturated spun bonded polyester mat.

  • Will not absorb moisture or rot

  • Resists damage from soil acids and alkalies

  • Porosity allows good interply bond between layers of membrane

  • Exhibits good strength and tear resistance

Uses

HYDRO GUARD Reinforcement Sheet is used as reinforcement with both hot and cold applied waterproofing membranes. The mat provides tensile strength and control of thickness. When HYDRO GUARD Reinforcement Sheet is used with hot applied rubberized asphalt, it reduces pin holing over concrete decks.

C0118-0005 Photoshopped.png

Step 1

C0120-0008 Photoshop.png

Step 2

Application

  • Unroll HYDRO GUARD Reinforcement Sheet into HYDRO GUARD Rubber Membrane or other waterproofing membrane immediately after application of membrane.


  • Overlap fabric no more than 6 mm (1/4 in) ensuring waterproofing membrane is applied between the overlapping plies so that no dry mat-to-mat overlap exists.


  • Ensure that mat lies flat without wrinkles by brooming if necessary.


  • Gaps between layers of fabric are acceptable if they are 6 mm (1/4 in) or less.

Limitations

HYDRO GUARD Reinforcement Sheet should not be stored exposed to the elements. Store rolls on their ends, instead of lying roll down.

Packaging

HYDRO GUARD Reinforcement Sheet is packaged in rolls 182.9 m (600 ft) in length by
914 mm (36 in) and 305 mm (12 in) in width.



Weight per roll is 5.7 kg for the wider 914 mm
(36 in) roll and 1.9 kg for the 305 mm (12 in) roll.

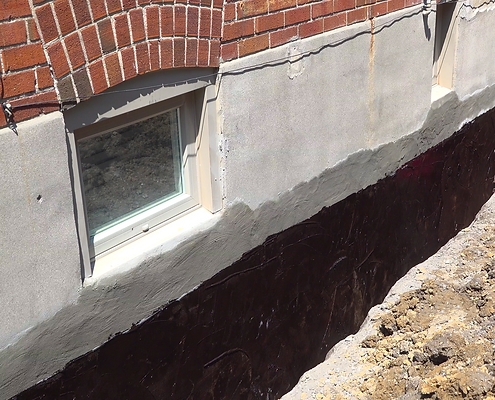

C0120-0006-1 Photoshopped.png

Step 3

Grab Tensile Strength........................

Trapezoid Tear..........................................



Mullen Burst..............................................

Thickness.....................................................

MD (24 lbs.) 107N
XMD (22 lbs.) 98N

MD (8.5 lbs.) 38N

XMD (8.5 lbs.) 38N

117kPa (17 psi)



0.2 mm (8 mils)

Physical Properties
